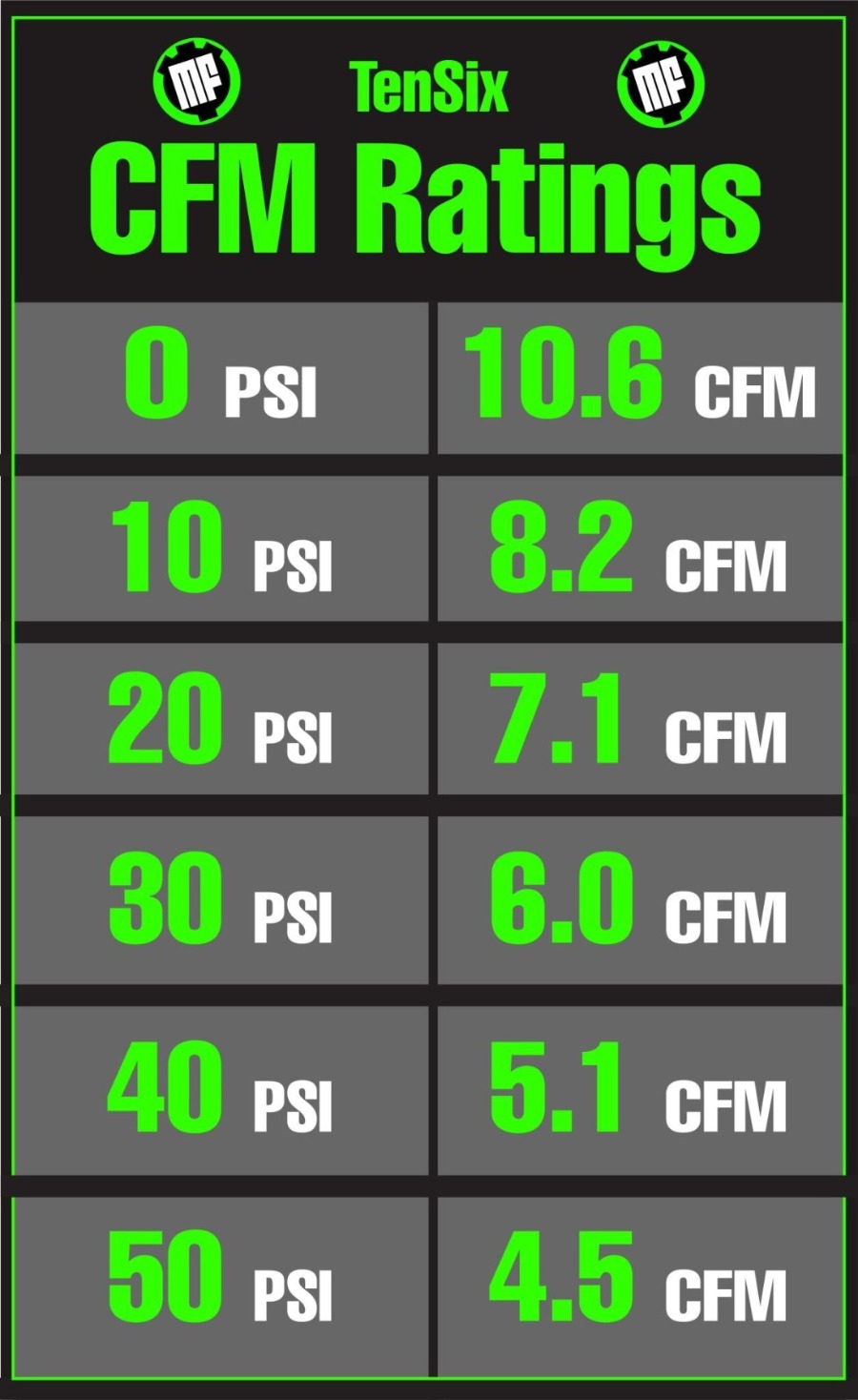

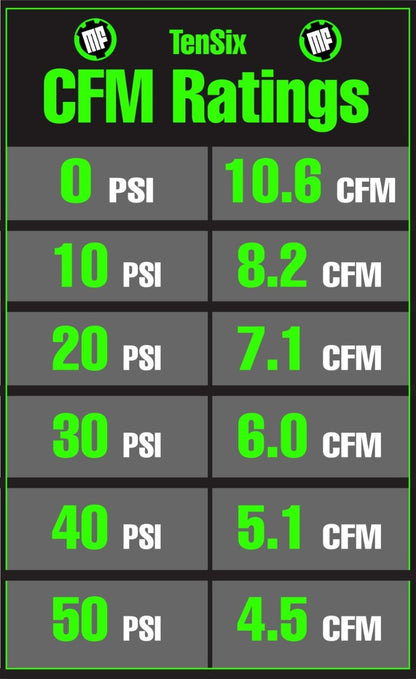

- 10.6 CFM dual cylinder compressor at 0 PSI
- 6.5 CFM at 30 psi
- 150 psi rated
- PSI Cutoff Switch (80psi on, 120psi off)
- Thermal Cutoff Switch & Purge Valve

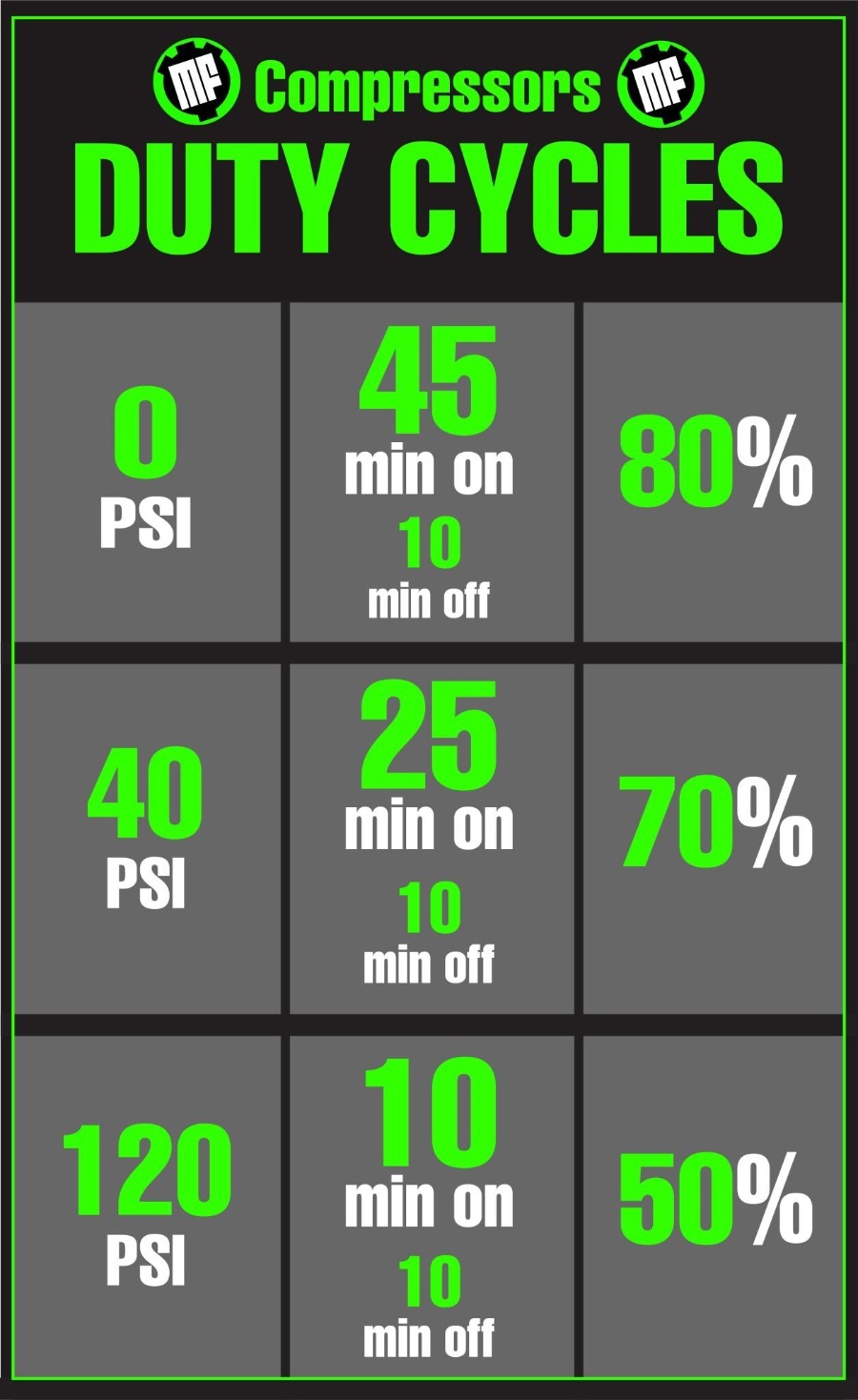

- 80% duty cycle @ 0psi (45min on, 10min off) (6-8 vehicles) (see duty cycle chart)
- 12v, 90amps peak, ~50amp running
- 14x7x9″ external dimensions
- 70-75 dB noise level from 1ft distance

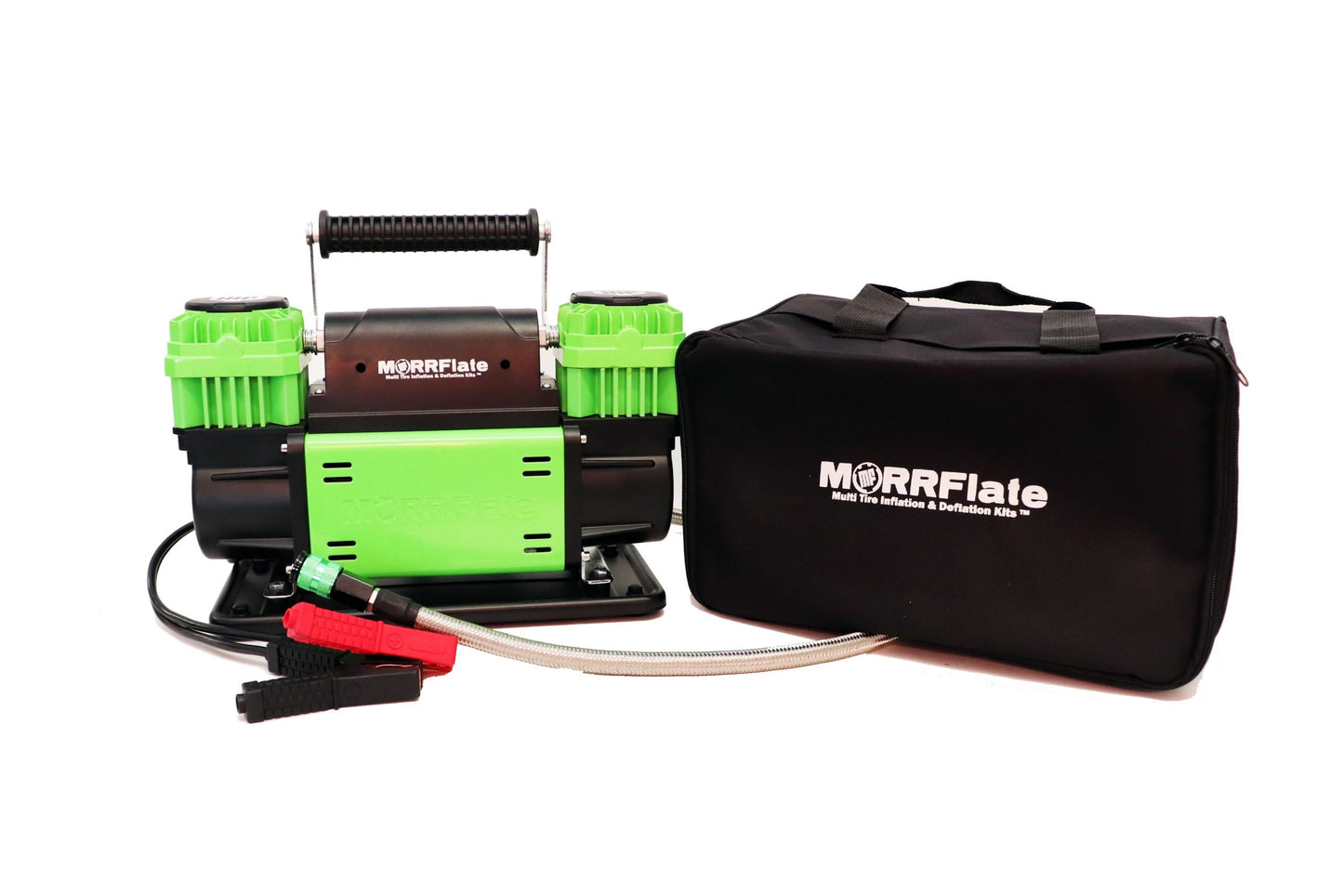

- Beefed up carrying bag with accessory pockets
- Threaded filter caps so the compressor can now be mounted in any direction/orientation (except upside down)
- USA Standard color matched air fitting – Push-to-connect “Universal” Coupler (Works with 1/4″ Industrial, Auto, or Aro fittings)
- WARNING: Compressors get hot! Recommended to wear the included MORRFlate Groovy Gloves while disconnecting air fittings.
- Since the TenSix™ is rated for 10.6 CFM, it is highly recommended to use with a MORRFlate 4 Tire Inflation & Deflation™ Kit to avoid back pressures on the compressor from filling 1 tire at a time.

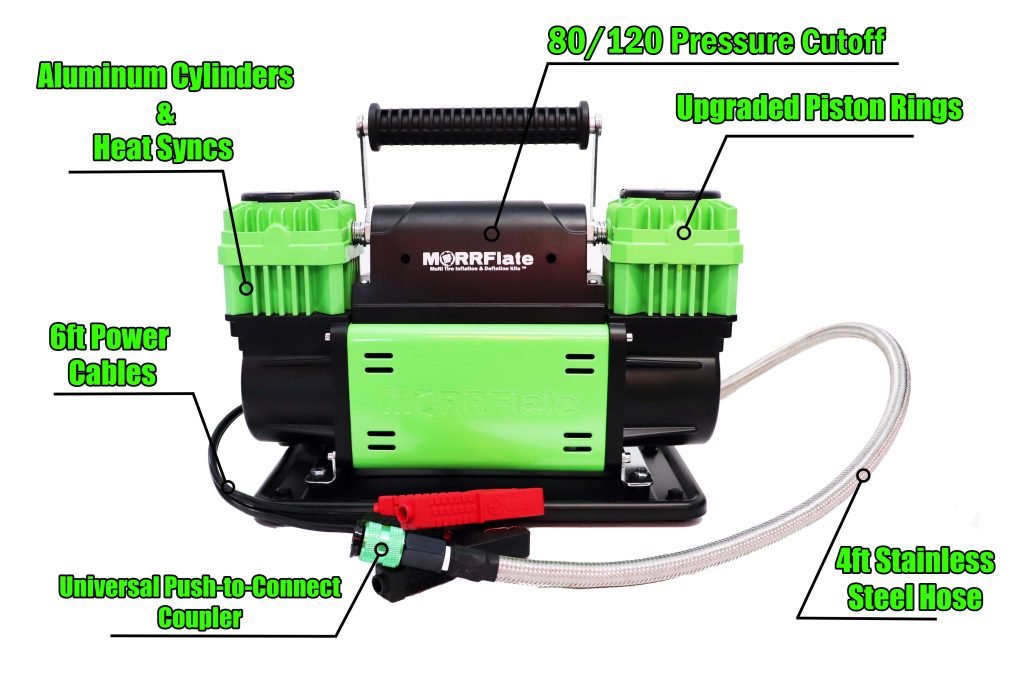

Gen2 Upgrades (Also, now unique to only MORRFlate):

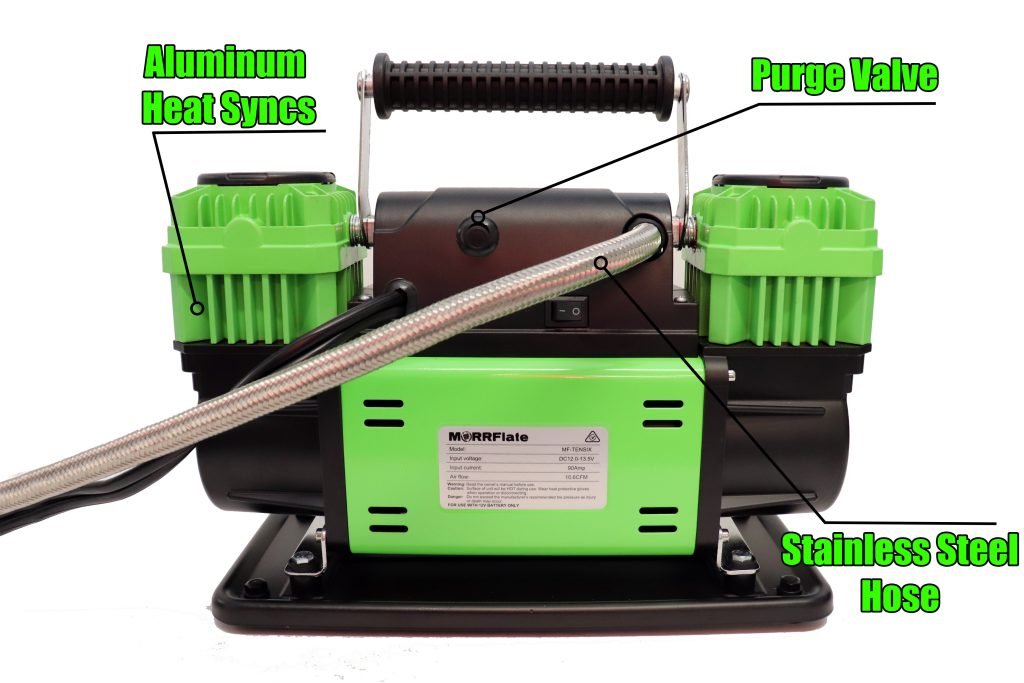

- Stainless Steel Outlet Hose (for better heat dissipation and heat sinking)
- Purge Valve (to release the internal pressures when done)
- Resized Aluminum heat sinks (upgraded from ABS so they actually fit the cylinders and works as a heat sink)
- Internal aluminum cylinders (upgraded from mild steel to dissipate heat better)
- New piston rings (better material for wear and heat resistance longevity).
Note About This Product: This compressor is not designed for 1 tire at a time. You can still air up a single flat if you need to, but the duty cycle dwindles to 8-10min doing 1 tire at a time. Airing up an entire vehicle, 1 tire at a time, will damage the TenSix. It just simply puts out too much air and is optimized for 4 tires at a time.
